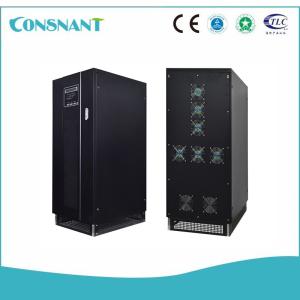

Uninterruptible Power Industrial UPS System With Comprehensive Protection

  • 1
  • 2

Brand Name : CONSNANT

Model Number : CNM330

Certification : CE, ISO9001, ISO14001

Place of Origin : Shenzhen, China

MOQ : 1 Unit

Price : Negotiable

Payment Terms : T/T, L/C, Western Union

Supply Ability : 500 pieces per month

Delivery Time : 20days after receiving 30% deposit

Packaging Details : Wooden Case

Online Hot Swappable : Yes

Protection : Unbalance load

Back Up Type : Long-acting Machine

Overload Capacity : Long term at 135% rated load ,150%1000% 100ms

Maintenance : Full front access, UPS, failed part can be replaced shortly

Display Language : 12 language (Chinese ,English ,Russian, French ,Spanish and so on).

Contact Now

Self-Diagnosis Advanced Modular UPS System With Comprehensive Protection

Brief Information:


CNM330 series is modular online UPS for sensitive equipment. The single cabinet power rating covers from 10KVA to 300KVA which delivers the best of combination of reliability, hot-swappable and flexibility. With the latest IGBT three-level technology and DSP control, CNM330 achieves a high input power factor, low THDi Modular design with N+X redundancy and online hot swapping ,easy to expand the capacity Full DSP control of high stability, reliability and safety Integrated IGBT module with improved performance and reduced size

Excellent Self-Diagnosis Performance:

  • Monitor inverter, rectifier
  • Monitor inverter fuse
  • Monitor battery
  • Monitor magnetic’s temperature
  • Monitor every fan failure
  • Monitor every switch status


Application:

  • Application IDC(Internet Data Center)
  • Computing center
  • ISP (Internet Service Provider )
  • Telecom , Finance, bank and securities , Tax
  • Hospital system , industrial automation
  • Precision equipment, etc.


Technical Specifications:

Model CNM330 20-300KVA
Capacity 20-300KVA
Main Input
Input Voltage 380V/400V/415V
Input Frequency Range 50/60Hz
Power Factor Full load>0.99 ,Half load >0.98
THDi THDi<3%
Input Power Soft-start Function 5-30s settable
Input Voltage Ranges 228V-476V;-20%~25% at Full load ; linear derating at -25% ~- 40%; can take 70% load at -40%
Frequency Range 40-70HZ
Battery
Battery Voltage ±240VDC(Default),12V Battery 30~40pcs can be choose
Charge Voltage Accuracy ±1%

Bypass
Bypass Input Voltage 380/400/415VAC 3-phase 4-wire
Voltage Range Default value is -20%~+15%; -40%, -30%, -10% ~ +10%, +15% , other ranges can be set via software
Overload Capacity

Long term at 135% rated load ,150%<load<180% more than 10 min,

load>1000% 100ms

Output
Inverter Output Voltage 380/400/415VAC 3-phase 4-wire
Voltage Accuracy ±0.5% ( balanced load ) , ±1% ( unbalanced load )
THDV THDV<1% (linear load) , THDV<3% (nonlinear load)
Power Factor 0.9
Three Phase Angle Accuracy 120°± 0.5°
Current Crest Ratio 3:1
Overload Capacity 110%1h,125%10mins,150%1mins,>150%200ms
Transfer Time 0ms,15ms (Eco Mode)

System
Frequency 50Hz/60Hz (Settable)
Mains Synchronization Range ±2Hz(Default value), adjustable with step of 0.5Hz within range of +/- 0.5Hz - 3Hz
Protection Level IP20
Operation Temperature 0-40ºC
Storage Temperature -25ºC~70ºC ( without battery)
Humidity 0-95% (no-condensing)
Noise(dB) 55-62dB,Adjusted with load
Weight module:PM20 20KVA power module : 35KG
module:PM30 30KVA power module : 35KG
module:PM40 40KVA power module : 35KG
Dimension (W x D x H)mm 3 module cabinet 600X900X1135
5 module cabinet(5 battery cabinet option) 600X1100X2070/
6 module cabinet 600X900X1535
10 module cabinet 900X900X2080
power module 440X650X132(3U)(10KVA/20KVA/30KVA)


(Optional South America 208V must be derating use)
